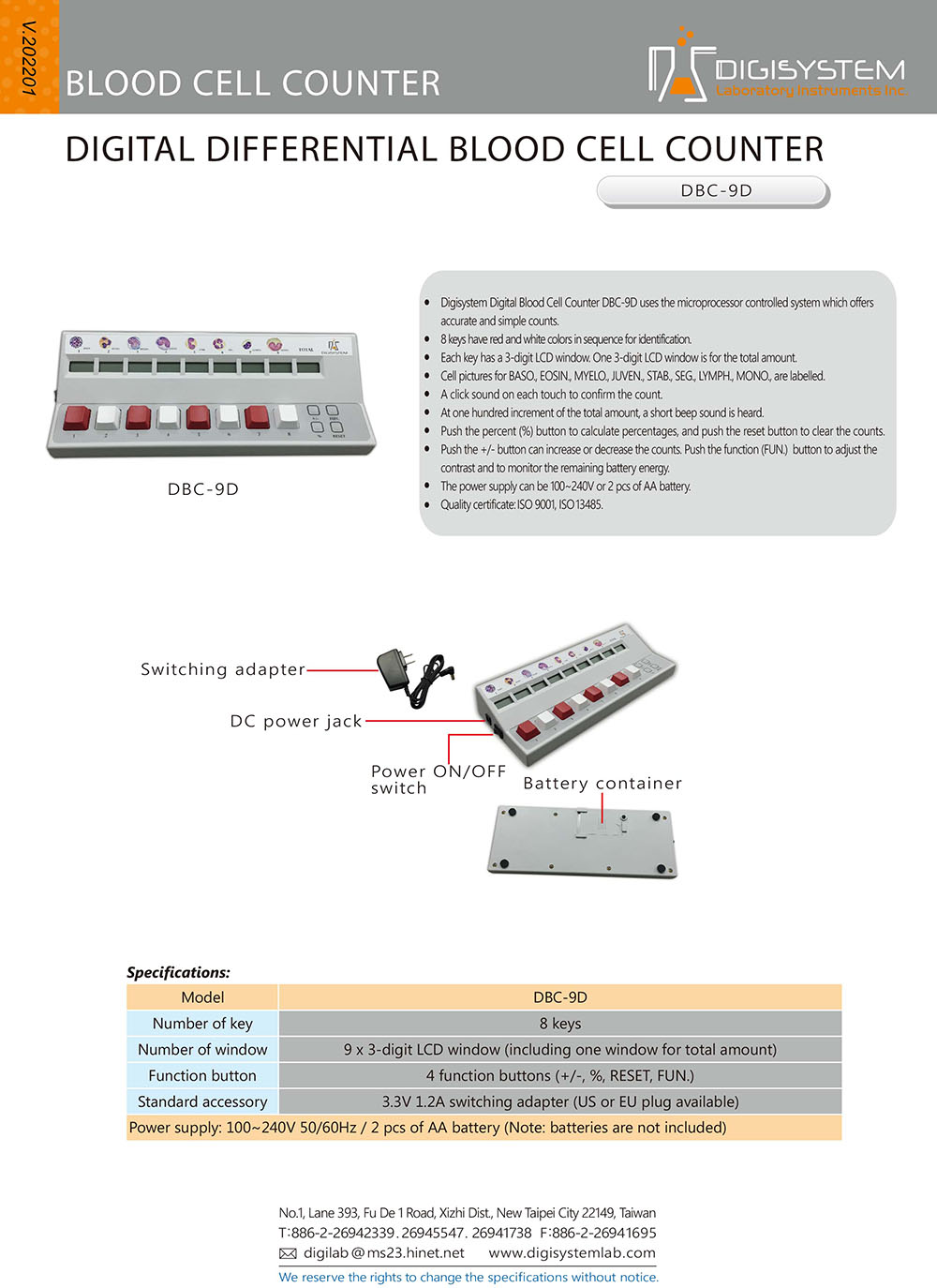

Digital Differential Blood Cell Counter

Model：DBC-9D (4 Functions)

Digital Differential Blood Cell Counter DBC-9D is used in hematology to classify and count white blood cells.

Download Add to inquiry

Features

• Digisystem Digital Blood Cell Counter DBC-9D use microprocessor controlled system which offers accurate and simple counts.

• 8 buttons have red and white colors in sequence for identification.

• Each button has a 3-digit LCD window. One 3-digit LCD window is for the total amount.

• Cell pictures for BASO., EOSIN., MYELO., JUVEN., STAB., SEG., LYMPH., MONO., are labeled.

• A click sound on each touch to confirm the count.

• At one hundred increment of the total amount, a short beep sound is heard.

• Push the percent (%) button to calculate percentages, and push the reset button to clear the counts. Push the +/- button can increase or decrease the counts. Push the function (FUN.) button to adjust the contrast and to monitor the battery energy.

• The power supply can be 100~240V or 2 pcs of AA battery.

• Quality certification: ISO 9001, ISO 13485

Specification

Model	DBC-9D
Number of button	8
Number of window	9 x 3-digit LCD window (including one window for total amount)
Function button	4 function buttons (+/-, %, RESET, FUN.)
Standard accessory	3.3V 1.2A switching adapter
Weight	N.W. 350g/G.W. 620g
Dimension (mm)(WxDxH)	245×94×48
Power supply	100~240V 50/60Hz or 2pcs of AA battery(note: batteries are not supplied)
