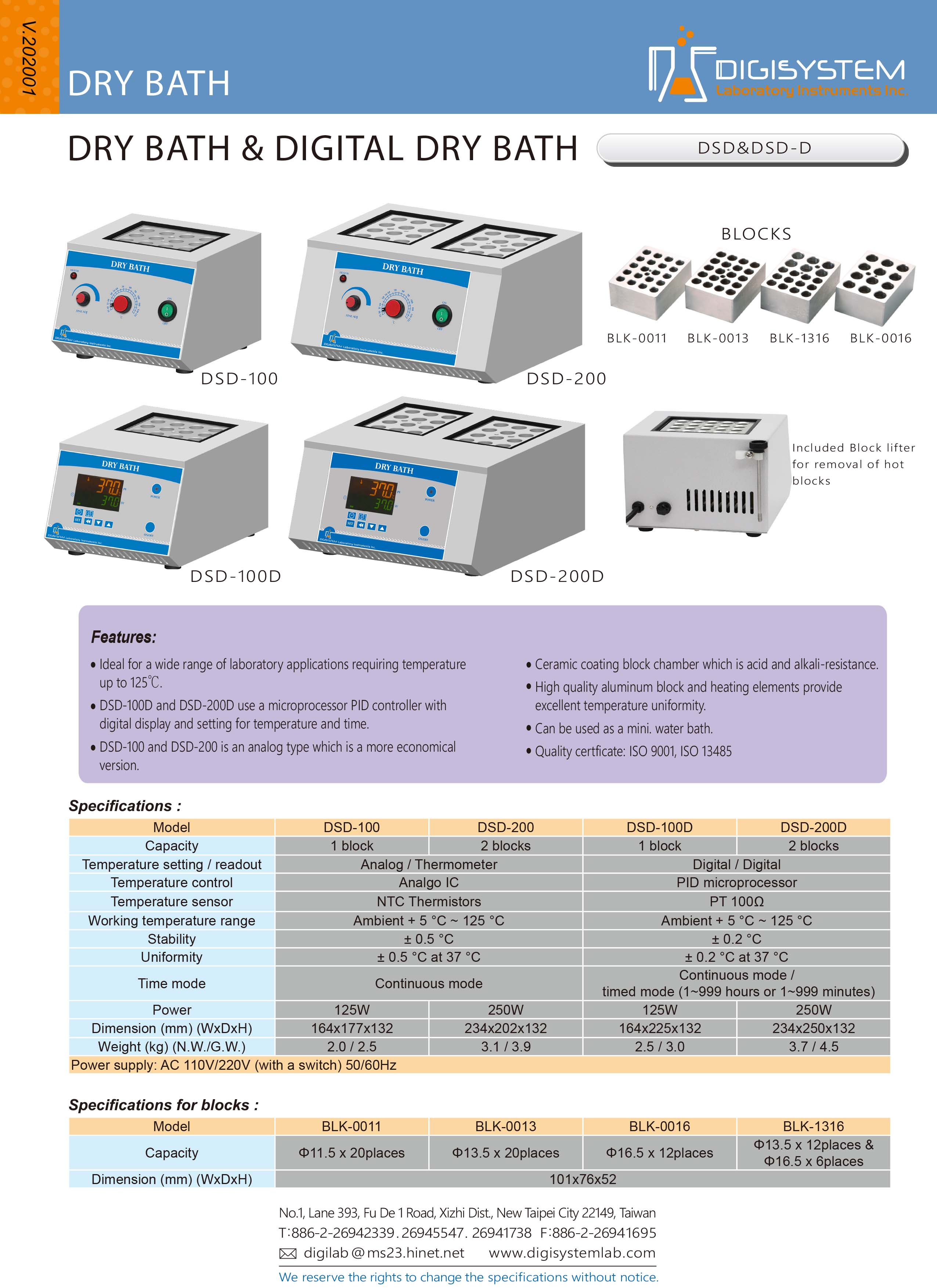

Dry Bath
Model：DSD-100
Dry bath DSD-100 is an analog dry bath with one block capacity.
Download
Add to inquiry
Features
• Test tubes insert into aluminum blocks which maintain temperature stability.
• Easy temperature adjustment is made by turning a reference knob.
• Combinations with different blocks provide a variety of applications.
• Quality certification: ISO 9001, ISO 13485
Specification
| Model | DSD-100 | |
| Block capacity | 1 | |
| Temperature readout | Thermometer | |
| Temperature setting | Analog | |
| Temperature control | Analog IC | |
| Temperature sensor | NTC thermistors | |
| Stability | ±0.5℃ | |
| Working temperature range | Ambient +5℃ ~125℃ | |
| Power watts | 80W | |
| Weight (kg) (N.W./G.W.) | 2.5 / 3.0 | |
| Dimension | W160xD210xH120mm | |
| Power supply | AC 110V 50/60Hz (220V 50/60Hz available) | |
Blocks:
| Model | BLK-0011 | BLK-0013 | BLK-0016 | BLK-1316 |
| Capacity | Φ11.50mm x20 places | Φ13.50mm x20 places | Φ16.50mm x12 places | Φ13.50mm x 12 places & Φ16.5mm x 6 places |
| Dimension | W101xD76xH52mm | |||
