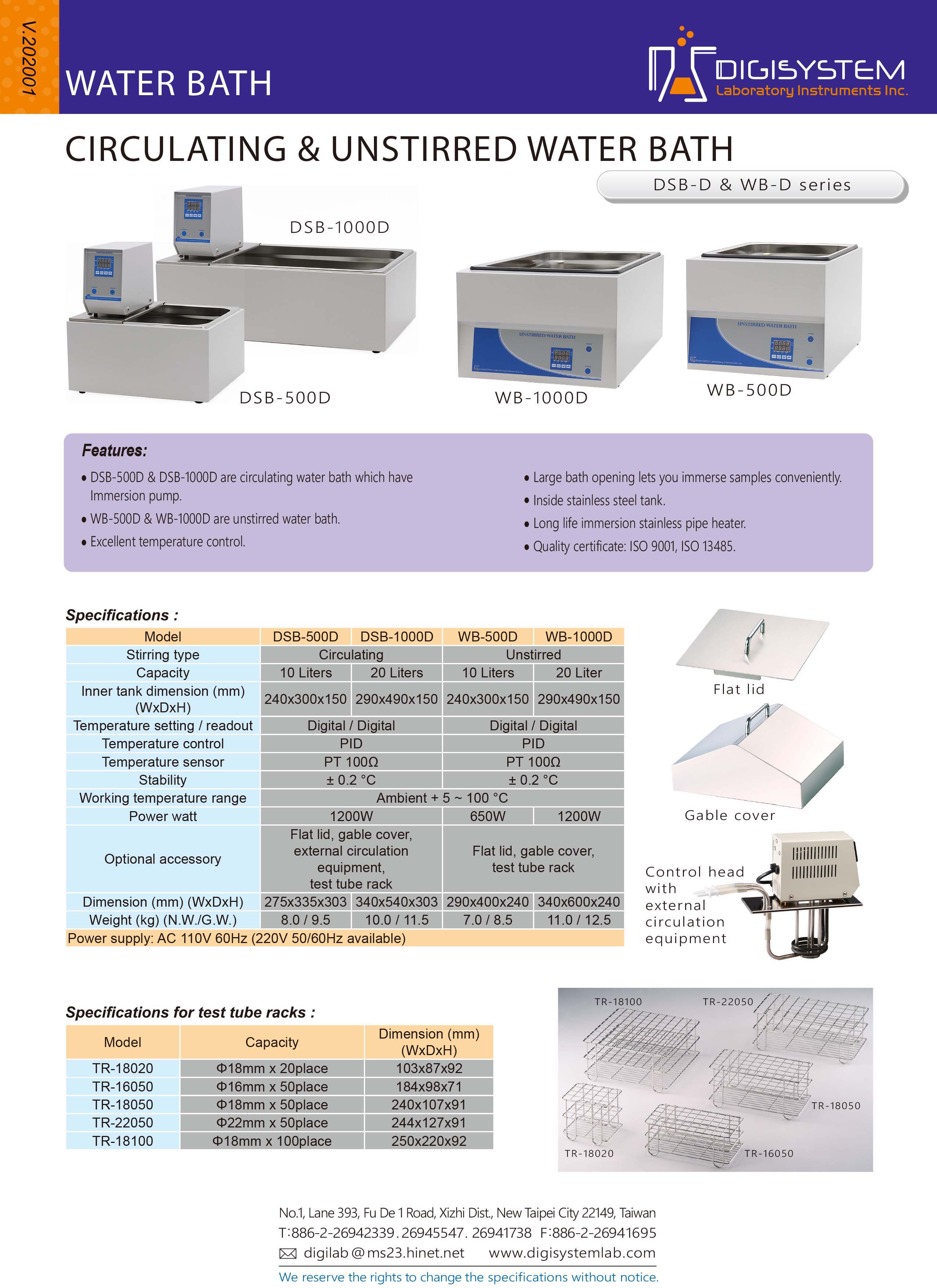

Unstirred Water Bath
Model:WB-500D / WB-1000D
Unstirred water bath WB-500D / WB-1000D have PID microprocessor controller with digital temperature setting and digital temperature readout. With lid or gable cover, the temperature can reach up to 100 degree C.
Download
Add to inquiry
Features
• PID microprocessor temperature control.
• Large bath opening lets you immerse samples conveniently.
• Inside stainless steel tank.
• Unstirred type.
• Long life immersion stainless pipe heater.
• Quality certification: ISO 9001, ISO 13485
Specification
Model | WB-500D | WB-1000D |
Capacity | 10 Liters | 20 Liters |
Inner tank dimension | W240xD300xH150mm | W290xH490xH150mm |
Temperature setting | Digital | |
Temperature readout | Digital | |
Temperature control | PID | |
Temperature sensor | PT100Ω | |
Stability | ±0.2℃ | |
Working temperature range | Ambient+ 5℃ ~100℃ | |
Power watts | 650W | 1,200W |

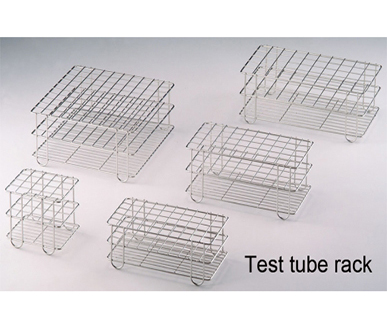

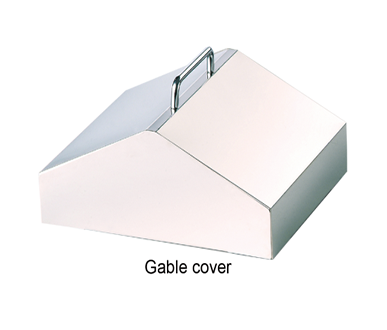

Optional accessory | Gable cover, test tube rack | |
Weight (kg) (N.W./G.W.) | 7.0 / 8.5 | 11.0/12.5 |
Overall dimension | W290xD400xH240mm | W340xD600xH240mm |
Power supply | AC 110V 50/60Hz (220V 50/60Hz available) |
