Microprocessor Micro Centrifuge

Model：DSC-102SMD

Microprocessor Micro Centrifuge DSC-102SMD is designed for small specimens. DSC-102SMD uses a microprocessor controlled system which offers the accurate and simple operation. Centrifuge with metal housing is sturdy and durable.

Download Add to inquiry

Features

• DC brushless motor is durable and maintenance free.

• 9 sets program memory function.

• Self-diagnostic function which can detect the errors for unbalance, over heat, over current, over voltage, over speed, lid opening.

• Auto-balancing system can extend motor life and reduce noise.

• With safety interlock, it can prevent the lid from being opened during operation.

• Forced fan air convection prevents the motor from overheating.

• Precision digital timer can be set to 15 minutes with 10 sec. increment.

• DSC-102SMD can offer short runs by pushing the function key.

• LCD digital display enables users to monitor the present speed value and the remaining time.

• Automatic brake system can offer rapid deceleration.

• DSC-102SMD features a see-through window.

• The lid will be opened automatically once the rotor stops spinning.

• Quality certification: ISO 9001, ISO 13485.

Specification

Model	DSC-102SMD
Order number	DSC-102SMD-HT	DSC-102SMD-MAR
Speed	1,200~12,000rpm	1,200~14,000rpm
Timer	0~15 min. digital timer	0~15 min. digital timer
Motor	DC brushless motor	DC brushless motor

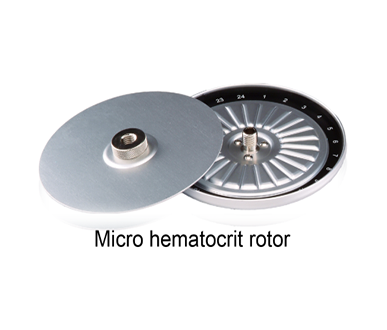

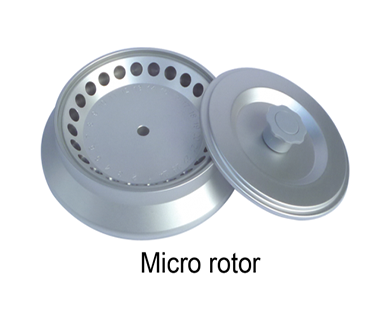

Rotor	HT-24	MAR-24
Max. R.C.F.	14,808g	17,965g
Capacity	24 x capillary tube (Diam. 1.5x75mm)	24 x (1.5~2.0)ml

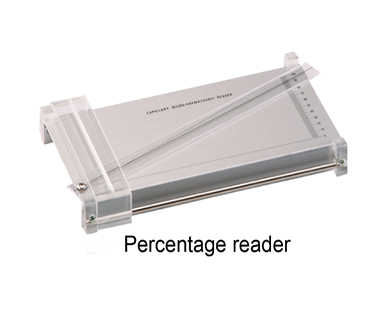

Standard accessory	Percentage reader (Aluminum)	None

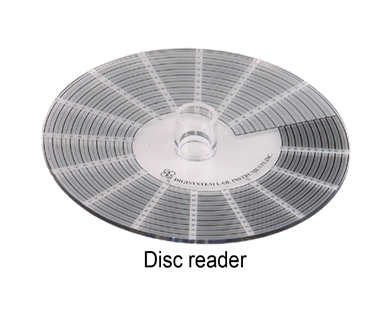

Optional accessory	Disc reader (plastic)	None
Weight (kg)	N.W. 13.0 / G.W. 14.5	N.W. 13.0/ G.W. 14.5
Overall dimension	W320xD355xH255mm	W320xD355xH255mm
Power supply	AC 100~240V 50/60Hz	AC 100~240V 50/60Hz
