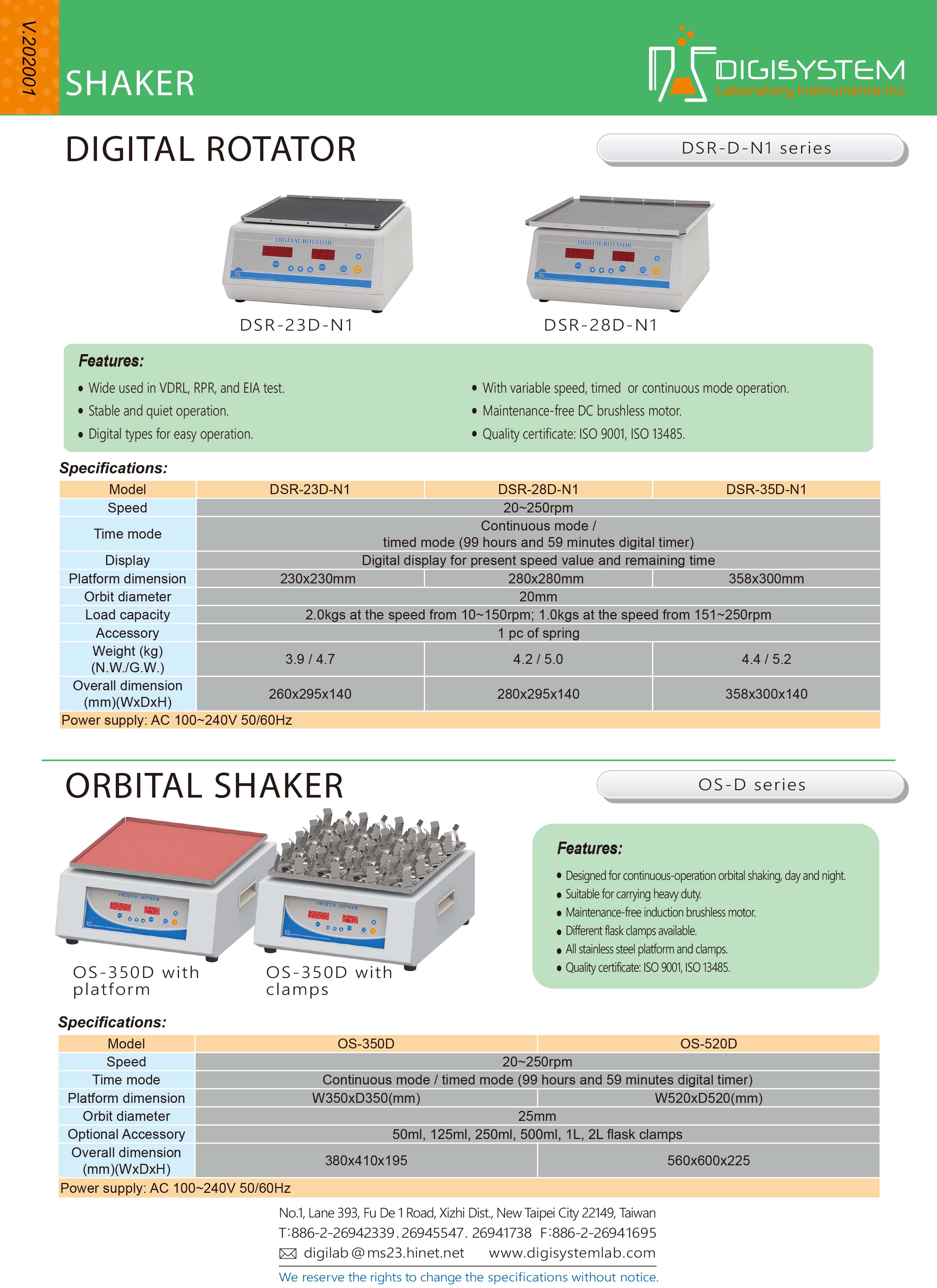

Digital Rotator

Model：DSR-D-N1

Digital Rotator DSR-23D-N1 / DSR-28D-N1 / DSR-35D-N1 are widely used in VDRL, RPR and EIA test. Digital Rotator is equipped with digital display to indicate present speed and the remaining time.

Download Add to inquiry

Features

• Wide used in VDRL, PRP, and EIA test.

• Stable and quite operation.

• Digital Rotator DSR-23D-N1 / DSR-28D-N1 / DSR-35D-N1 have a digital display which can display the present speed value and remaining time.

• Digital timer can set from 0 to 99 hours and 59 seconds.

• With variable speed , timer control, continuous operation.

• Quality certification: ISO 9001, ISO 13485.

Specification

Model	DSR-23D-N1	DSR-28D-N1	DSR-35D-N1
Platform dimension	230X230mm	280x280mm	358x300mm
Speed	20~240rpm
Time mode	Continuous mode / Timed mode (99 hours 59 minutes digital timer)
Display	Digital display for present speed value and the remaining time
Orbital diameter	20mm
Load capacity	2.0Kg at the speed of 20~150rpm; 1.0Kg at speed of 151~240rpm
Accessory	1 pc of spring
Weight (N.W./G.W.)	3.9 / 4.7 Kgs	4.2 / 5.0 Kgs	4.4 / 5.2 Kgs
Overall diameter	260x295x140mm	280x295x140mm	358x300x140mm
Power Supply	100~240V 50/60Hz
